Neobiotech IS System Digital Lab Analog

Size

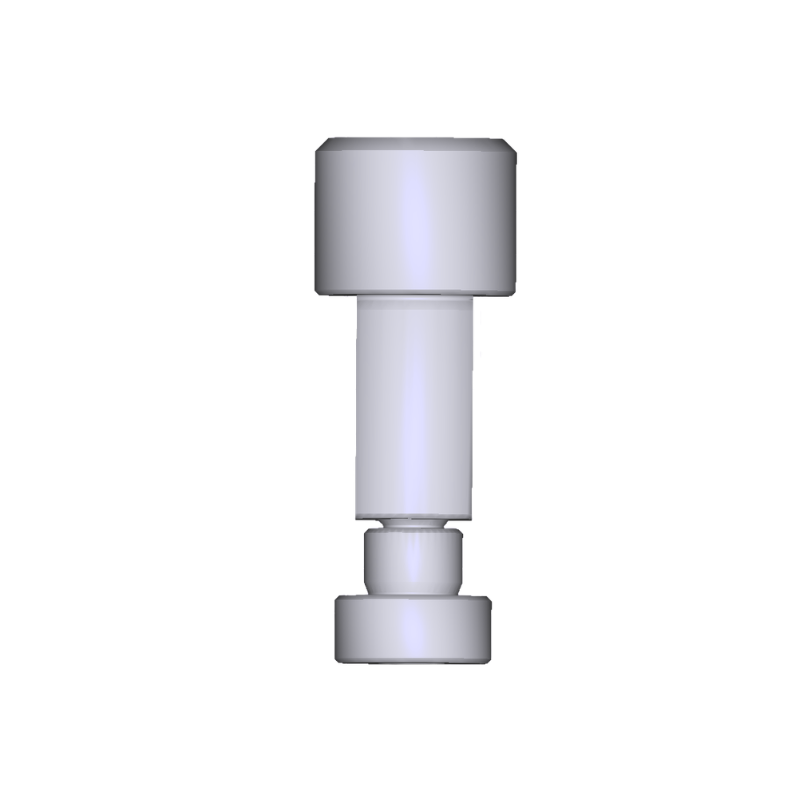

Neobiotech IS System Digital Lab Analogs (Press-Fit & Screw-Retained)

Precision-machined medical-grade stainless steel implant analogs engineered for 3D-printed resin model workflows and digital prosthetic fabrication. Designed to accurately replicate the internal hex connection of Neobiotech CMI IS implant systems and Multi-Unit Abutments.


Digital Laboratory & CAD/CAM Pairing Guide

To prevent vertical or rotational seating discrepancies in 3D-printed resin models, ensure the correct lab analog and CAD library match:

  • Screw-Retained Digital Analogs (DLAISRW): Pair with Metal Scanbodies (ISSB5011 / ISSB4013) and the Neobiotech Digital Library (requires an open-bottom channel in the 3D-printed model for underside screw fixation).
  • Press-Fit Lab Analogs (SGISLA500): Pair with PEEK Scanbodies (ISPSBH50NB / ISPSBH40NB) and the standard Neobiotech Model Library (standard closed-bottom press-fit hole).

Component Specification & Workflow Matrix

SKU Fixation Type Connection / Platform Printed Model Hole Matching Scanbody Target CAD Library
DLAISRW Screw-Retained (Underside) Narrow / Regular / Wide Open-bottom screw channel ISSB5011 (Metal Ø 5.0 mm) Neobiotech Digital Library
SGISLA500 Press-Fit (Friction Lock) Narrow / Regular / Wide Standard closed-bottom hole ISPSBH50NB / ISPSBH40NB (PEEK) Standard Neobiotech Library

Clinical & Technical Features

  • Zero-Play Seating Stability: Precision anti-rotational retention geometry eliminates vertical or rotational movement during crown seating, contact adjustment, and porcelain layering.
  • High-Precision Internal Hex: CNC-machined from medical-grade stainless steel to guarantee an exact passive fit with Neobiotech IS stock, custom, and multi-unit abutments.
  • Dual Workflow Compatibility: Available in both screw-retained (DLAISRW) and press-fit (SGISLA500) configurations to match your laboratory's preferred 3D-printed model protocol.
  • Reusable Durability: Engineered to withstand repeated abutment insertion and removal cycles across multiple laboratory cases without connection wear.

Component Structure

  1. Internal Hex Connection: Precision-milled top interface reproducing the exact internal hex geometry of Neobiotech IS fixtures.
  2. Anti-Rotation Indexing Flat: Directional alignment feature ensuring accurate rotational orientation within the 3D-printed resin socket.
  3. External Retention Ribs: Machined circumferential grooves providing secure mechanical engagement inside the printed model.
  4. Base / Retention Screw Thread: Flat closed base (SGISLA500) or underside threaded port (DLAISRW) for vertical locking stability.

Compatible Scanbodies (Required for Digital Impression)

Ensure your lab analog is paired with the corresponding Neobiotech intraoral scanbody:


Official CAD Digital Libraries & Technical Support

Download the latest official CAD datasets directly from the Neobiotech Global Portal (select Exocad, 3Shape, or Other on the portal menu):

Download Neobiotech Official CAD Libraries ↗

Notice for Registered Dental Practitioners & Laboratories: Please verify that your 3D printer resin calibration and CAD library spacer settings are updated prior to printing working models. For technical assistance or library installation support, contact the digital department at Neo Dental.
