Neobiotech IS Oral Scanbody

Type

Second generation Neobiotech IS Oral Scanbody flag.

Individual package includes one scanbody flag with one screw to fit a 1.2mm hex driver.


Options:

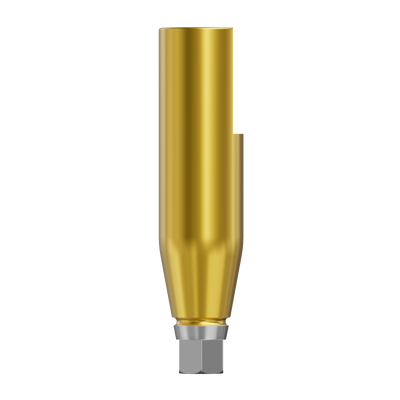

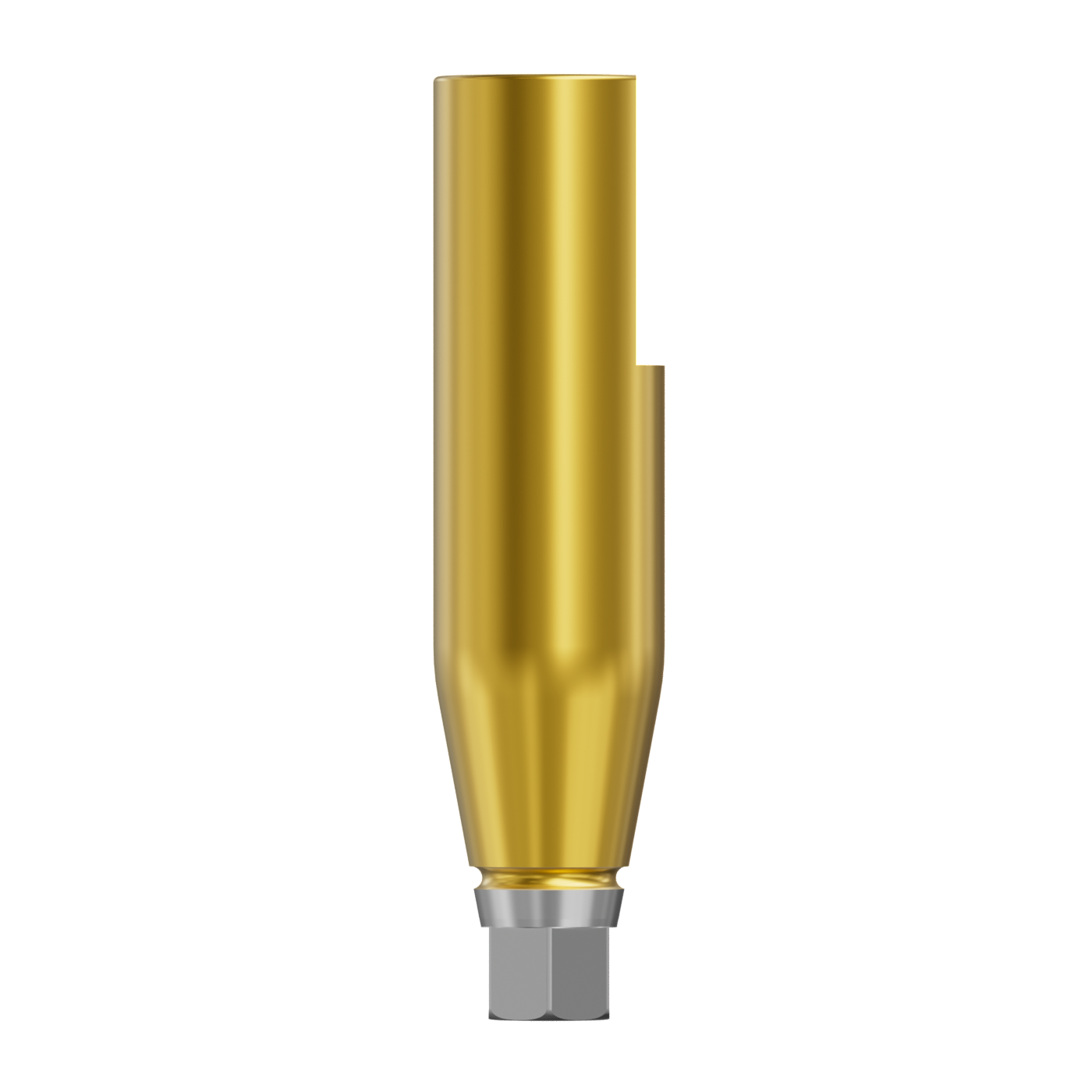

1. D4 Scanbody - 4.0mm diameter scanbody for narrow, deep space - connects to all Neobiotech IS implants

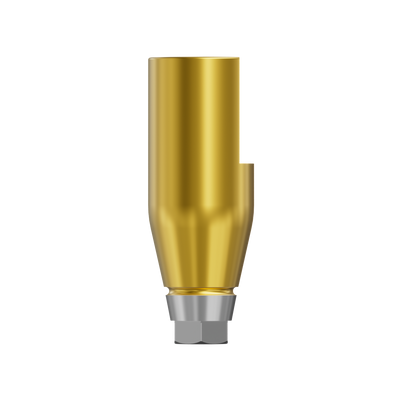

2. D5 Scanbody - 5.0mm diameter scanbody for regular space - connects to all Neobiotech IS implants

3. Multi Unit Scanbody - 4.8mm diameter scanbody for Multi Unit abutment - connects to Neobiotech IS Multiunit abutments (straight and angled)




A. Connection Height - Decide connection height when combining the fixture data

B. Oral Scan Body Screw - Fix the scan body by connecting to fixture

C. Cylinder of the Scan body - Path coordination when combining the fixture data

D. Flattened side of the Scan Body - Hex direction recognition when combining the fixture data

E. Fixture - Neobiotech IS Implants (not included)





 Multi unit scanbody flags for multi unit abutments




Resources
Download link to DME library - 3shape / Exocad
